Model Whirlpool D9757^1 ELECTRIC RANGE – Common Parts & Diagrams

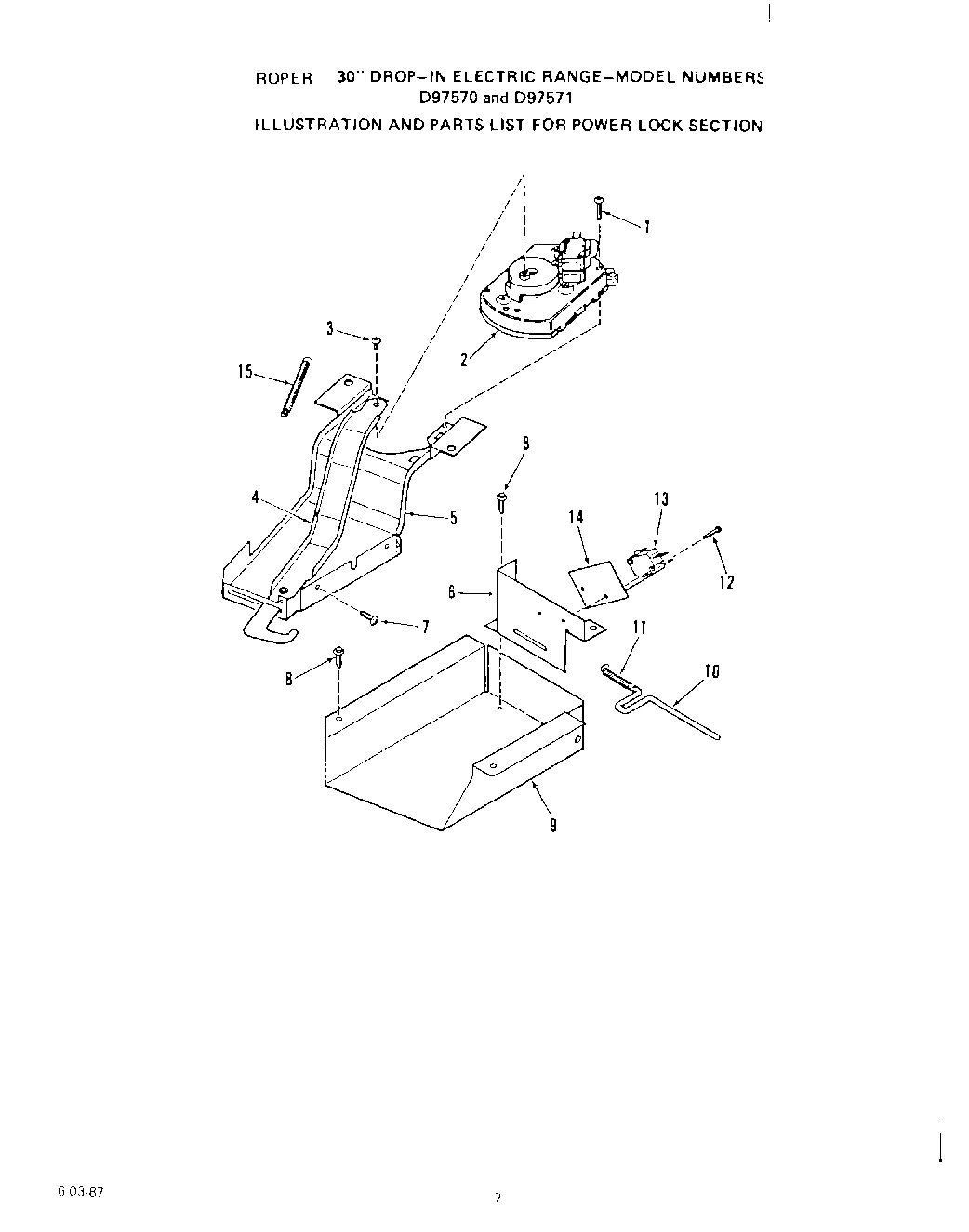

04 - POWER LOCK

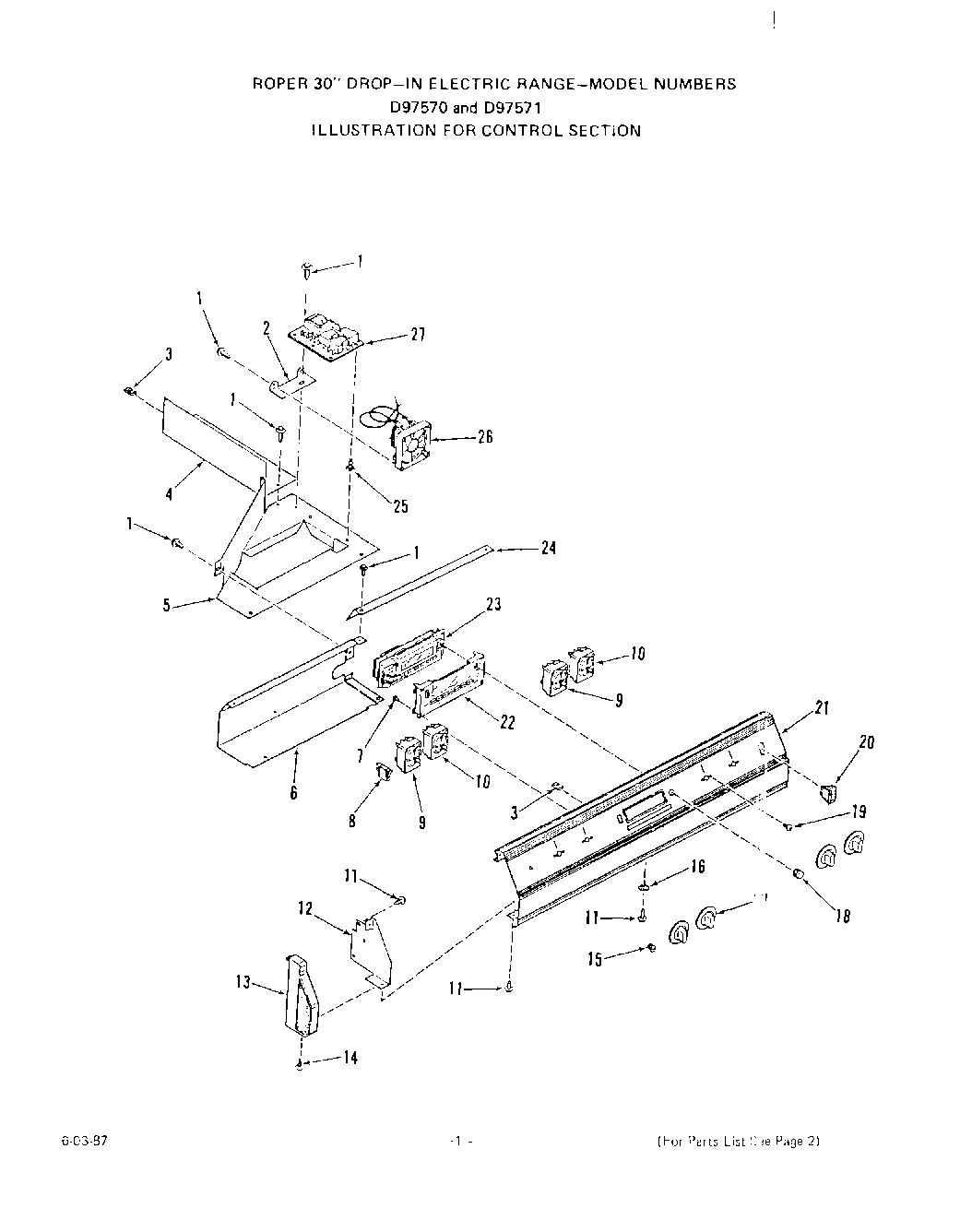

01 - CONTROL

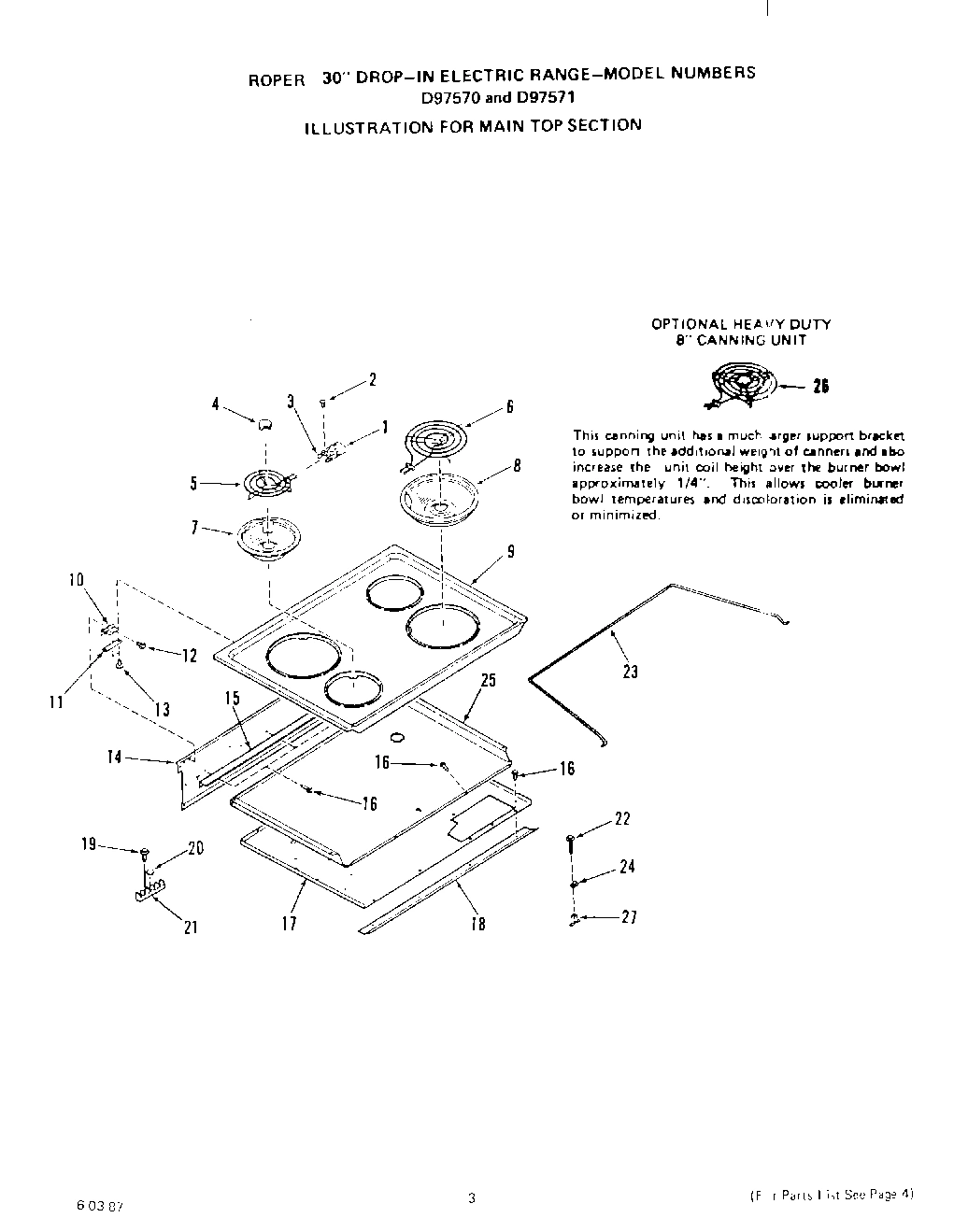

02 - MAIN TOP , LIT/OPTIONAL 8`` CANNING

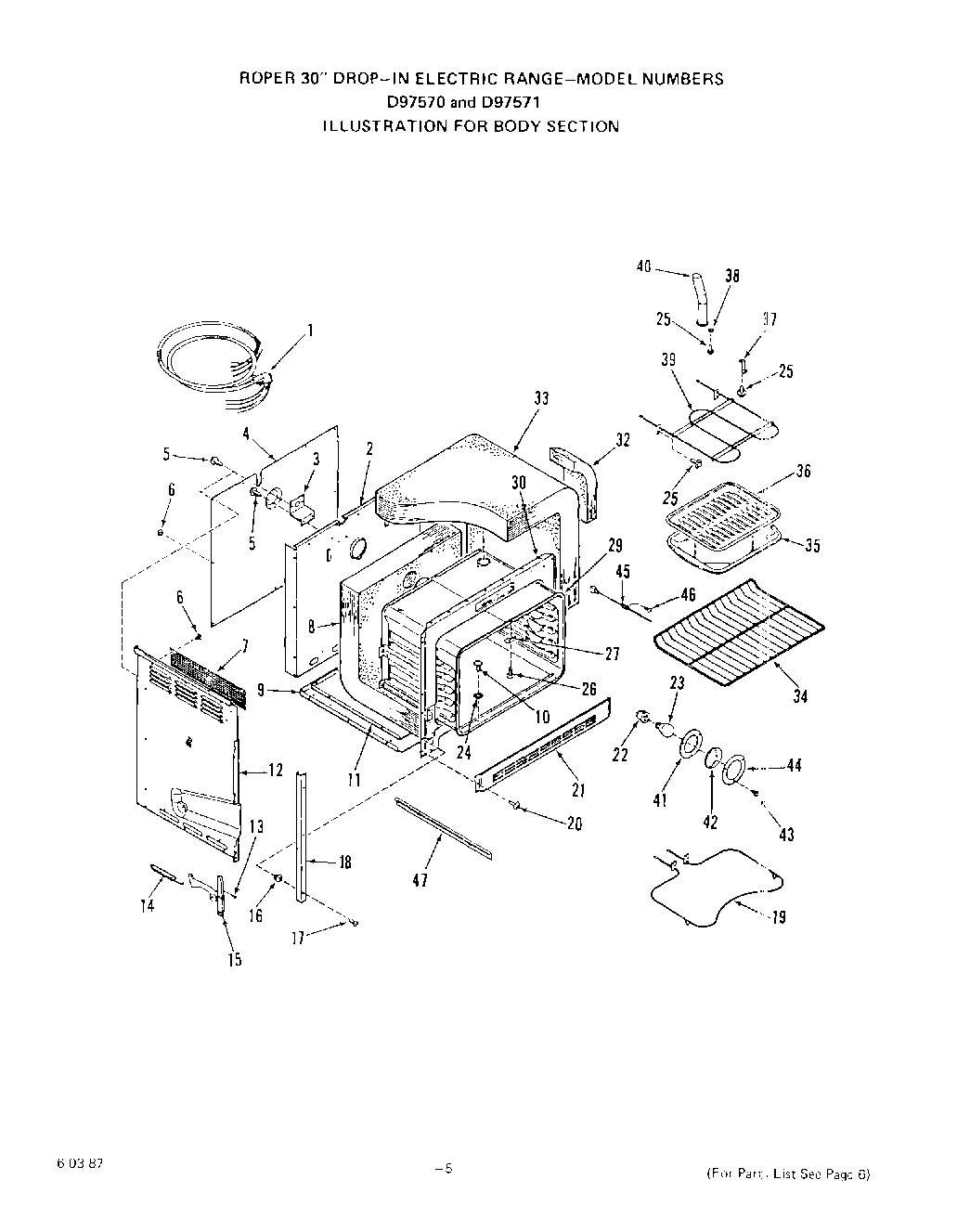

03 - BODY

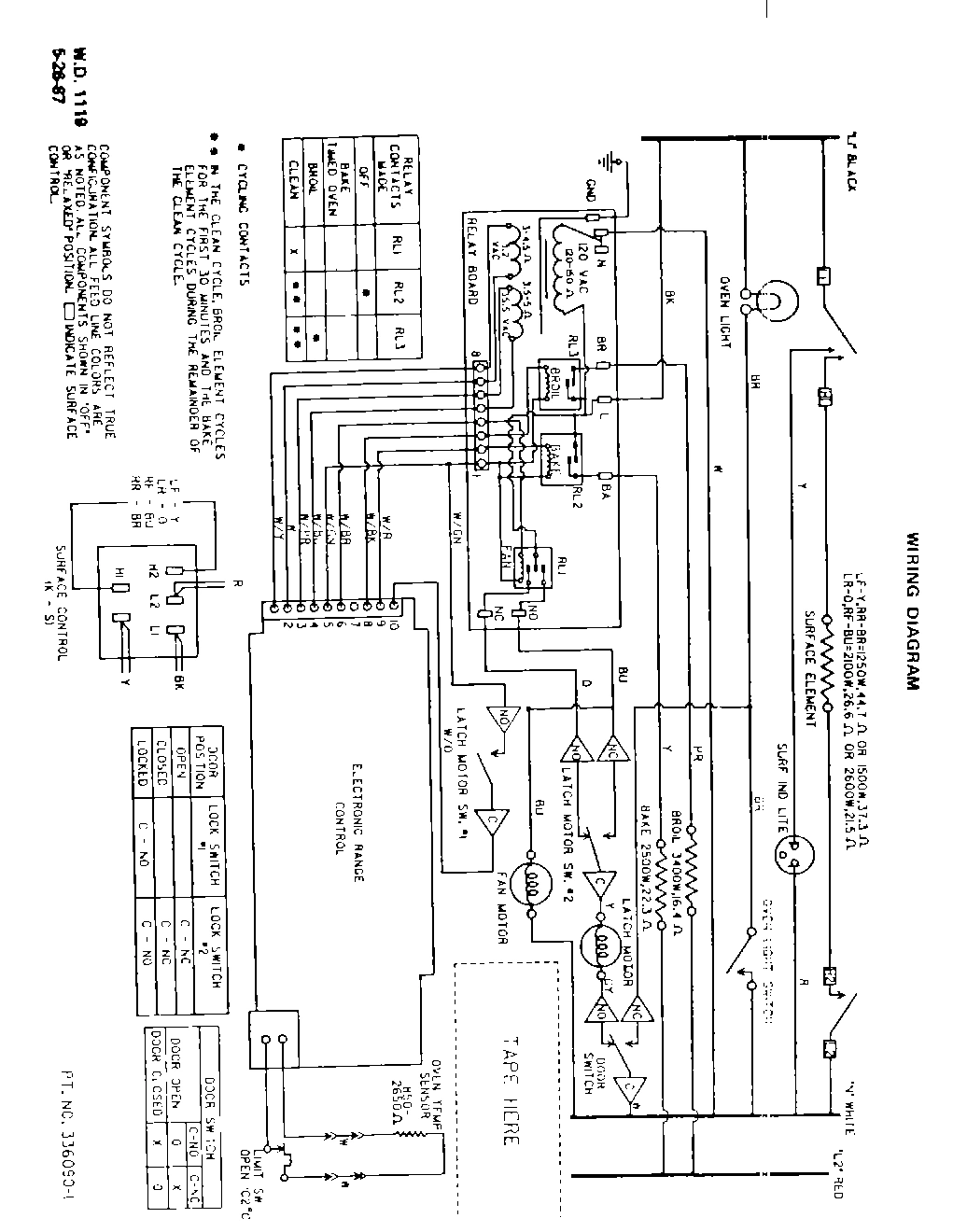

06 - WIRE HARNESSES AND COMPONENTS

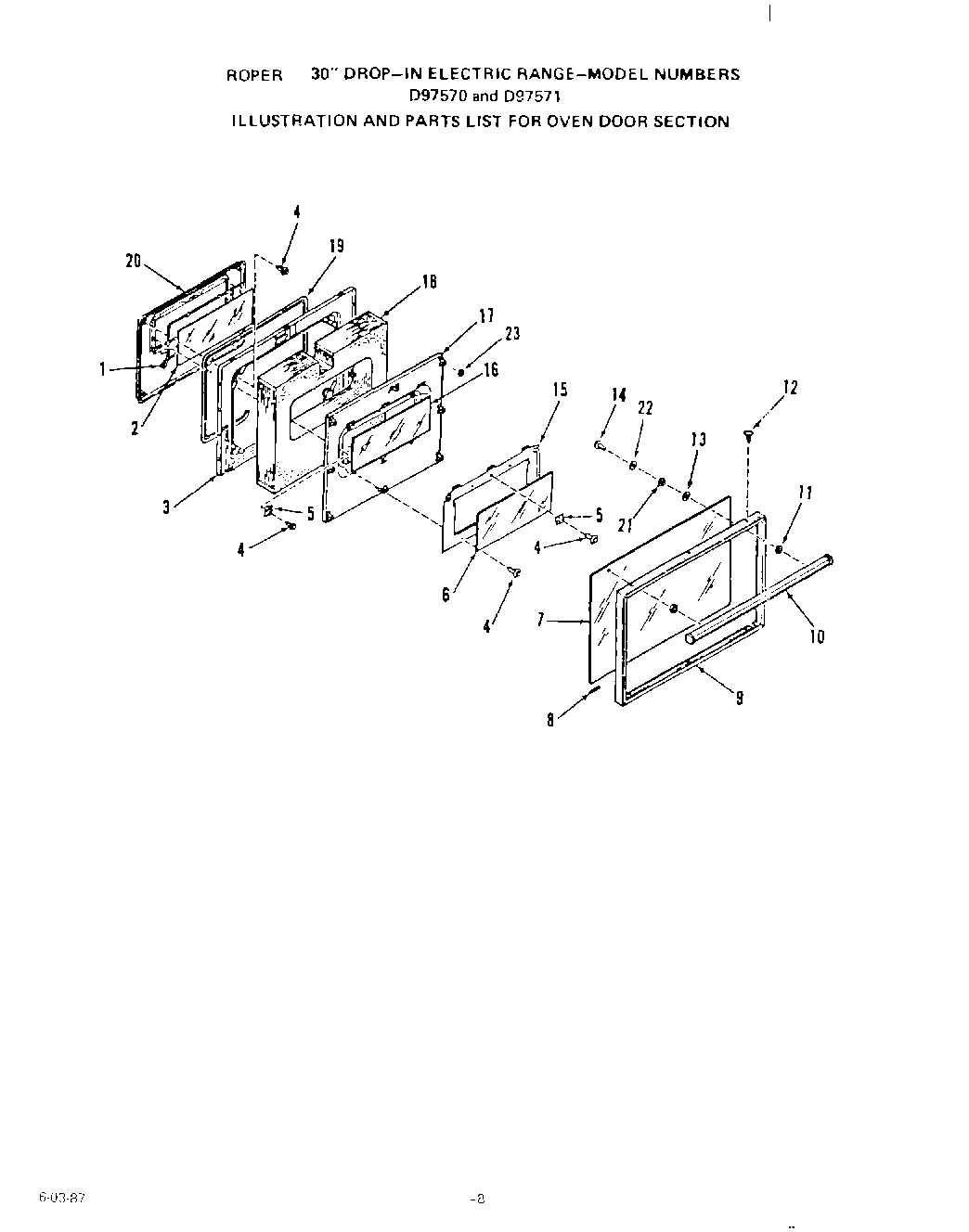

05 - OVEN DOOR
08 - SECTION
Common parts from model Whirlpool D9757^1 ELECTRIC RANGE
1
Terminal Block w/Wires WPL 318960 Contact Us For Availability
1
Inner Glass Seal WPL 302935 Contact Us For Availability
1
Screw 8 - 32 x 850 WPL 103436 Contact Us For Availability
2
Back-Main WPL 336077 Contact Us For Availability
2
Fan Bracket WPL 337484 Contact Us For Availability
2
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
2
Inner Door Glass WPL 336442 Contact Us For Availability
2
Lock Motor Asm WPL 336467 Contact Us For Availability
3
Bracket-Conduit Mounting WPL 312987 Contact Us For Availability
3
Speed Nut 10 - 32 WPL 108069 Contact Us For Availability
3
Terminal Block Clip WPL 318872 Contact Us For Availability
3
Door Lining WPL 331624 Contact Us For Availability
3
Screw 8-32x3/8`` WPL 232183 Contact Us For Availability
4
Cover-Wire WPL 330920 Contact Us For Availability
4
Fan Duct WPL 337663 Contact Us For Availability
4
Medallion WPL 319704 Contact Us For Availability
4
Lock Lever Asm WPL 337971 Contact Us For Availability
5
Lock Cover WPL 337664 Contact Us For Availability
5
Surface Element 6`` WPL 325510 Contact Us For Availability
5
Glass Retainer WPL 326009 Contact Us For Availability
5
Door Lock Plate WPL 337937 Contact Us For Availability
6
Clip WPL 70588 Contact Us For Availability
6
Wire Cover WPL 313197 Contact Us For Availability
6
Surface Element 8`` WPL 325506 Contact Us For Availability
6
Intermediate Door Glass WPL 326088 Contact Us For Availability
6
Door Switch Bracket WPL 337752 Contact Us For Availability
7
Screen-Burner Box WPL 333224 Contact Us For Availability
7
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
7
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
7
Burner Bowl 6`` WPL 296481 Contact Us For Availability
7
Outer Door Glass WPL 332067 Contact Us For Availability
8
Insulation-Oven Back & Bottom WPL 308861 Contact Us For Availability
8
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
8
Indicator Light WPL 331717 Contact Us For Availability
8
Burner Bowl 8`` WPL 304969 Contact Us For Availability
8
Cushion (3 Req) WPL 112370 Contact Us For Availability
9
Bottom-Main WPL 330898 Contact Us For Availability
9
Infinite Control WPL 324608 Contact Us For Availability
9
White WPL 307202 Contact Us For Availability
9
Almond WPL 313028 Contact Us For Availability
9
Chrome WPL 330884 Contact Us For Availability
9
Main Top WPL ARI22733A9 Contact Us For Availability
9
Oven Door Frame WPL 332065 Contact Us For Availability
9
Lock Box WPL 337485 Contact Us For Availability
10
Infinite Control WPL 324609 Contact Us For Availability
10
Main Top Hinge WPL 315568 Contact Us For Availability
10
Handle WPL 332452 Contact Us For Availability
10
Switch Actuator Pin WPL 337771 Contact Us For Availability
11
Retainer-Insulation (Bottom) WPL 330872 Contact Us For Availability
11
Hinge Mounting Bracket WPL 315782 Contact Us For Availability
11
Spacer, Door Handle WPL 107158 Contact Us For Availability
11
Spring WPL 337834 Contact Us For Availability
12
Left WPL 337216 Contact Us For Availability
12
Right WPL 337218 Contact Us For Availability
12
Retainer-Insulation (Sides) WPL ARI22735A5 Contact Us For Availability
12
Screw WPL 331704 Contact Us For Availability
12
Control Panel Mounting Bracket WPL ARI22728A9 Contact Us For Availability
12
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
12
Screw 4-40x11/16`` WPL 328956 Contact Us For Availability
13
Right WPL 315398 Contact Us For Availability
13
Left WPL 315400 Contact Us For Availability
13
Right WPL 330817 Contact Us For Availability
13
Left WPL 330818 Contact Us For Availability
13
End Cap WPL ARI22729A3 Contact Us For Availability
13
Screw 6-32x1/4`` WPL 293121 Contact Us For Availability
13
Washer WPL 333014 Contact Us For Availability
13
Micro Switch WPL 334078 Contact Us For Availability
14
Spring-Oven Door WPL 282681 Contact Us For Availability
14
Screw 10ABx1/2`` WPL 69014 Contact Us For Availability
14
Cover-Upper Wire WPL 333020 Contact Us For Availability
14
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
14
Insulator WPL 329171 Contact Us For Availability
15
Right WPL 335599 Contact Us For Availability
15
Left WPL 335600 Contact Us For Availability
15
Hinge-Oven Door WPL ARI22736A7 Contact Us For Availability
15
Lens-Indicator Light WPL 331705 Contact Us For Availability
15
Rear Wire Shield WPL 333022 Contact Us For Availability
15
Mounting Plate WPL 328615 Contact Us For Availability
15
Lock Spring WPL 337933 Contact Us For Availability
16
Spacer-Expansion WPL 330905 Contact Us For Availability
16
Washer WPL 21067 Contact Us For Availability
16
Center Door Glass WPL 336443 Contact Us For Availability
17
Screw 8ABx3/4`` WPL 282634 Contact Us For Availability
17
Knob-Infinite WPL 336379 Contact Us For Availability
17
Burner Box Bottom WPL 336097 Contact Us For Availability
17
Insulation Retainer WPL 328623 Contact Us For Availability
18
Right WPL 330903 Contact Us For Availability
18
Left WPL 330904 Contact Us For Availability
18
Trim-Side WPL ARI22737A1 Contact Us For Availability
18
Knob-Clock WPL 334961 Contact Us For Availability
18
Extension-Burner Box WPL 333610 Contact Us For Availability
18
Insulation WPL 335782 Contact Us For Availability
19
240 Volt WPL 335912 Contact Us For Availability
19
208 Volt (Optional) WPL 335913 Contact Us For Availability
19
Element-Bake WPL ARI22738A6 Contact Us For Availability
19
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
19
Screw 10-32x1`` WPL 313190 Contact Us For Availability
19
Door Gasket WPL 292244 Contact Us For Availability
20
Oven Light Switch WPL 334649 Contact Us For Availability
20
Hex Nut WPL 97816 Contact Us For Availability
20
Door Lining Plug WPL 331559 Contact Us For Availability
21
Trim-Bottom WPL 331515 Contact Us For Availability
21
Control Panel WPL 336969 Contact Us For Availability
21
Junction Block WPL 290105 Contact Us For Availability
21
Glass Spacer WPL 333015 Contact Us For Availability
22
D97570 WPL 337365 Contact Us For Availability
22
Holder-Oven Lamp WPL 330901 Contact Us For Availability
22
D97571 WPL 334898 Contact Us For Availability
22
Clock Lens Asm. WPL ARI22730A8 Contact Us For Availability
22
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
22
Washer WPL 99279 Contact Us For Availability
23
Bulb-Oven Light WPL 111257 Contact Us For Availability
23
Felt Washer WPL 335178 Contact Us For Availability
23
D97570 WPL 337088 Contact Us For Availability
23
D97571 WPL 337632 Contact Us For Availability
23
Clock/Oven Control WPL ARI22731A5 Contact Us For Availability
23
Main Top Support Rod WPL 336079 Contact Us For Availability
24
Control Cover WPL 338234 Contact Us For Availability
24
Clip WPL 106885 Contact Us For Availability
25
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
25
Spacer WPL 334955 Contact Us For Availability
25
Top-Burner Box WPL 333018 Contact Us For Availability
26
Fan WPL 335558 Contact Us For Availability
26
240 Volt WPL 326786 Contact Us For Availability
26
Optional Heavy Duty 8`` Canning Element WPL ARI22734A9 Contact Us For Availability
27
Cover WPL 304835 Contact Us For Availability
27
D97571 WPL 337633 Contact Us For Availability
27
D97570 WPL 337672 Contact Us For Availability
27
Relay Circuit Board WPL ARI22732A5 Contact Us For Availability
27
Spacer WPL 297007 Contact Us For Availability
28
Retainer-Thmst. Bulb (2 Req) WPL 321539 Contact Us For Availability
29
Oven Body WPL 331578 Contact Us For Availability
30
Front Frame WPL 336176 Contact Us For Availability
32
Insulation WPL 316951 Contact Us For Availability
33
Insulation-Oven Wrap WPL 308860 Contact Us For Availability
34
Rack-Oven WPL 326069 Contact Us For Availability
35
Pan-Broiler WPL 331592 Contact Us For Availability
36
Grid-Broiler Pan WPL 326297 Contact Us For Availability
37
Support-Broil Element WPL 324808 Contact Us For Availability
39
240 Volt WPL 319526 Contact Us For Availability
39
208 Volt (Optional) WPL 319527 Contact Us For Availability
39
Element-Broil WPL ARI22739A9 Contact Us For Availability
40
Tube-Vent WPL 333581 Contact Us For Availability
41
Gasket-Lens WPL 229371 Contact Us For Availability
42
Lens-Oven Lamp WPL 114989 Contact Us For Availability
44
Retainer-Oven Light Lens WPL 229372 Contact Us For Availability
45
Sensor WPL 334300 Contact Us For Availability
46
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
47
Burner Box Side Trim WPL 316928 Contact Us For Availability
× ![]()
